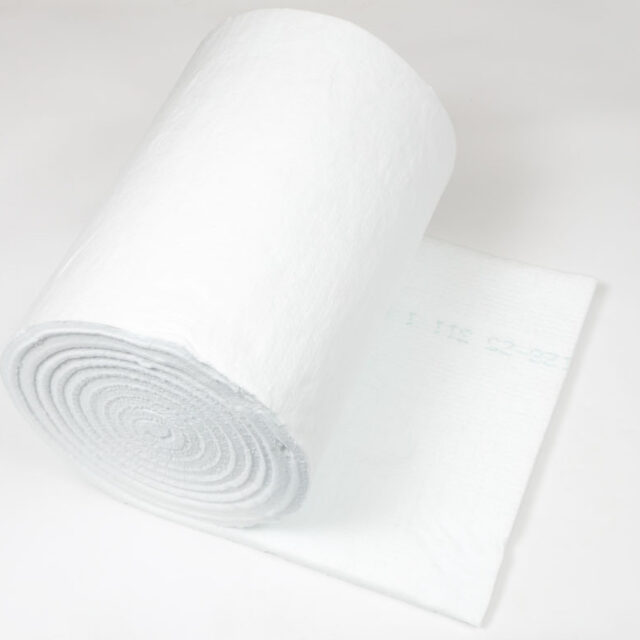

Superwool Fibre Blanket 96kg/m³ 25x600x7300mm

Thermal insulation blankets are used to cover the heating elements on a heat treatment set up.

DESCRIPTION

Thermal insulation blankets are used to cover the heating elements on a heat treatment set up to, help ensure the desired temperature is reached, reduce heat losses away from the edge of the heaters, and provide personnel protection.

Superwool is a high temperature insulating fibre blanket manufactured from Calcium Magnesium Silicate. This material has a thermal performance equivalent to refractory ceramic fibre up to 1200ºC. However, unlike ceramic fibre, Superwool is body soluble and has a larger needle particle size. These qualities mean that Superwool represents a lower respiratory hazard than ceramic fibre, although, as with all high temperature insulating fibre, normal respiratory protection in the form of an appropriate dust mask should be worn during handling.

Request a quote

Download brochure:

Specifications

Density, kg/m³	Thickness, mm	Width, mm	Length, mm
96	25	100	400
96	25	100	750
96	25	125	600
96	25	300	600
96	25	300	900
96	25	600	600
96	25	600	900
96	25	600	1200
96	25	600	1800
96	25	600	3600
96	25	600	7300
128	25	300	600
128	25	300	900
128	25	600	600
128	25	600	900
128	25	600	1200
128	25	600	1800
128	25	600	3600
128	25	600	7300

Transformer core

Three phase, forced air cooled, class H, 50kVA
Primary winding connected in Delta
Secondary winding connected in Star
Auxiliary winding: 110V a.c. 3.3kVA single phase

Primary supply

Primary voltage: 380V, 415V, 440V
Primary current: 76A, 70A, 66A
Frequency: 50/60 Hz

Protection

Three phase 80A circuit breaker with shunt trip
Three primary core winding over temperature thermostats linked to circuit breaker shunt trip

Secondary outputs

Output: 32.5V – 0V – 32.5V (for 30V and 60V heating element operation)
Auxiliary outputs: Two 110V, 10A, 50/60Hz output sockets
Number of temperature controlled output channels: 6 channels
Maximum load per output channel: 8.1kW (e.g. three 60V, 2.7kW heating elements)
Maximum current per output channel: 135A

Switching

Six double pole, 180A, contractors with 110V a.c. coil

Temperature control

Temperature measurement, display and control
Degrees Fahrenheit or Degrees Centigrade
Start temperature
Temperature ramp up and down in degrees per hour
Hold/soak temperature set point and hold/soak time period setting

Temperature recording

Ambient temperature: Minus 0˚C to 50˚C
Humidity: 20% to 80% RH, non-condensing is required (temperature x humidity < 3200)
Environmental protection: IEC IPSO (front door of panel mounted unit)
Input points: 12 Points
Input thermocouple types: Thermocouple inputs- K,
Reference range: Type K: -200˚C to 1370˚C (-326˚F to 249˚F)
Printing system: Ink jet system, 6 colour
Chart Width: 180mm
Chart Length: Z fold 20m
Chart Speed: 5 to 300mm per hour
