PRODUCT OVERVIEW

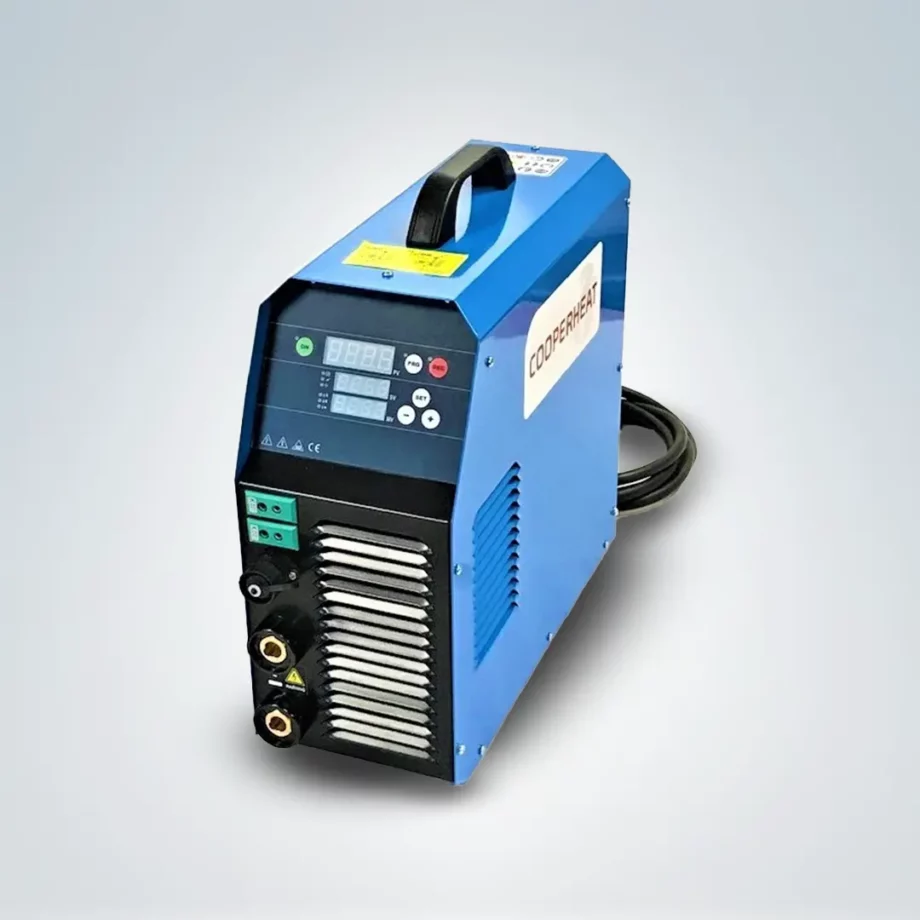

The Cooperheat Inverter Unit is a robust and highly efficient three-phase power supply engineered for demanding industrial applications. This lightweight unit, with a power capacity of 10.8kW and weighing just 17kg, is ideal for tackling small, hard-to-access welds. Its compact design and powerful output make it an essential tool for professionals seeking efficiency and portability in industrial heat treatment.
Product description
Powerful portable power 16201 for resistance heating is designed as a small, lightweight and powerful digital three-phase supply for industrial use. Important feature of the integrated temperature controller and recorder and also small dimensions, low weight and high efficiency compared with conventional resources, which facilitate handling and transport. This allows the use of resources such as quick service applications and use for work in confined spaces.
The temperature can be controlled by any of the 20 user-settable thermal profiles / programs with up to 180 – segments or directly to a user-set temperature, which can be changed at any time as needed. You can set speed heating or cooling, the time during which the temperature is to maintain the target temperature and also independently in each segment of the profile in Manual mode temperature control. There is of course no possibility of direct control of the heating power.
The big advantage is the continuous control voltage and thereby the heating power, which allows the use of heating elements and any reduction in the maximum receive power. Energy from the grid, and thus more flexible use in trouble spots.
Integrated digital answering machine is over heating with 64 hours of recording. Data can be transferred to a PC and there is further processed eg for logging the course of heating and its control. This was the maximum complexity and simplicity in using this device, the control handle each.
Product specifications
Dimensions
- 170mmWx370mmDx405mmH
Power Rating
- 10.8 kW
Supply Cable
- 2.5mm2
Temperature sensor
- Type K Thermocouple
Weight
- 17kg
Primary Voltage
- 3-phase 400V, 50/60Hz 15%, 23A +-
Output voltage
- 24-65 V
Output current
- 0-18A
Product resources
Inverter Unit 16201 Operating and Maintenance Manual
Frequently asked questions
What is the Cooperheat inverter machine used for in industrial resistance heating?
The Cooperheat inverter machine is used as a high-efficiency three-phase power supply for industrial resistance heating, welding, and controlled heat treatment applications. It provides precise temperature control, programmable thermal profiles, and portable power output, making it ideal for hard-to-access welds, confined workspaces, and on-site industrial heat treatment operations.
What are the key benefits of the Cooperheat Inverter Unit for heat treatment applications?
The Cooperheat Inverter Unit offers a lightweight yet powerful 10.8kW three-phase power supply with integrated temperature control and recording. Its compact 17kg design improves portability, while advanced programmable heating and cooling segments ensure accurate and repeatable heat treatment processes with higher efficiency compared to conventional power sources.
How does the Cooperheat inverter machine improve temperature control and process accuracy?
The Cooperheat inverter machine enhances temperature control through up to 20 user-settable thermal profiles with multi-segment programming. It allows operators to define heating rates, cooling speeds, and hold times, ensuring precise resistance heating performance. Integrated data recording enables full monitoring and transfer of temperature logs to a PC for quality assurance and traceability.
Why choose a Cooperheat portable inverter power supply for industrial welding and heat treatment?
Choosing a Cooperheat portable inverter power supply ensures high output power, continuous voltage control, and flexible energy usage in demanding industrial environments. Its compact, lightweight design enables easy transport and operation in confined spaces, while maintaining reliable performance for resistance heating elements and professional heat treatment applications.
