PRODUCT OVERVIEW

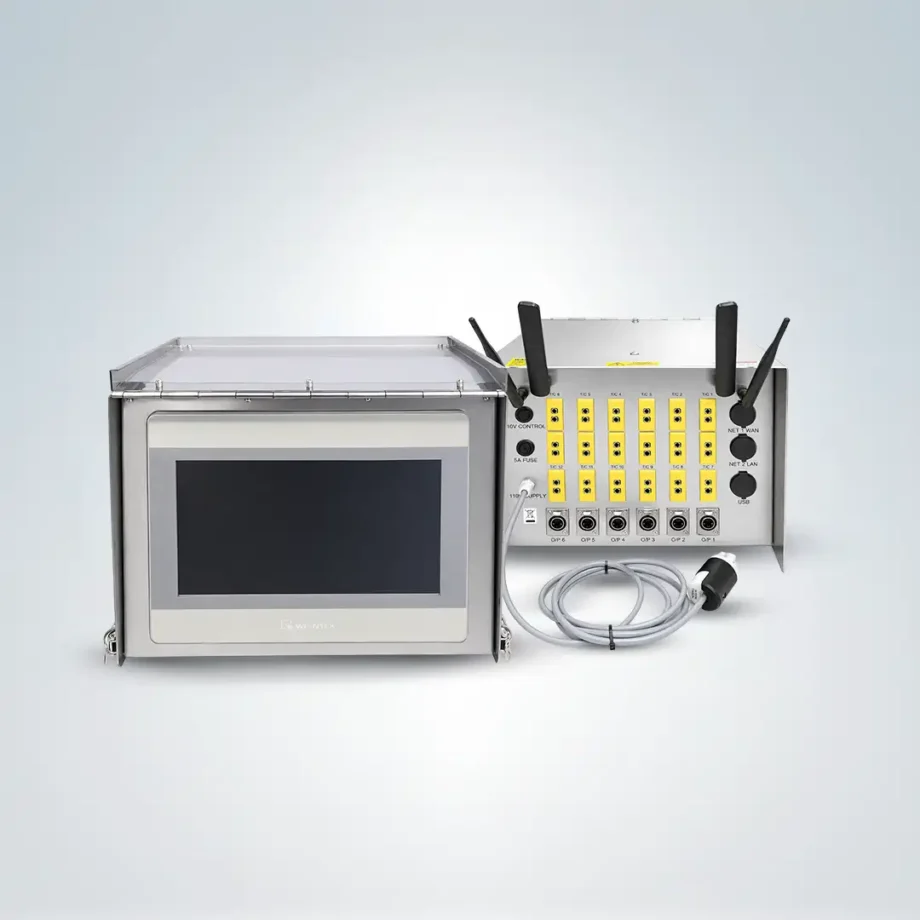

Cooperheat’s innovative Cooper8 is a heat treatment programmer/controller and digital recorder combined unit which is designed to work in conjunction with standard heat treatment equipment. The Cooper8 can be used as a separate modular unit or can be built into a bespoke heat treatment unit.
With our new COOPERMASTER™ mobile app, you can connect to the unit and control it through your phone.
Product description
The most versatile heat treatment unit on the market, the Cooper8 can be used as a six channel programmer module which is compatible with any standard heat treatment transformer power source with inputs for contactor control. In addition, it can also be used as a sophisticated programmer with the capacity to download data for analysis and print temperature charts.
The controls of the Cooper8 are extremely intuitive and can be operated and monitored by the operator locally or via remote control and remote data monitoring. To meet specific or bespoke heat treatment requirements, the Cooper8 can be customised with your needs in mind.
Product specifications
General specifications
- Display: Colour, 7-inch or 10-inch options, LCD screen, with touch screen control.
- Environment: Operating temperature 0-50 °C.
- Storage: Temperature -20 to 60 Relative Humidity 10% to 90%.
- Supply: 110 V a.c., 5A, 50/60Hz.
Construction
- Case material: Stainless Steel.
Dimensions
- Weight total unit: 13 kg.
- Case dimensions:
– Width: 32.5 cm;
– Height: 26.0 cm;
– Depth: 43.0 cm.
Recording and control
- Sensor: Type K Thermocouple to BS EN 60584-1 (others by special order).
- Accuracy: ± 0.1% of span ± 1 °C.
- Control: PID.
- Units: °C or °F.
- Channels: 6 control channels plus 6 monitoring channels.
Program
- Sensor: Type K Thermocouple to BS EN 60584-1 (others by special order).
- Accuracy: ± 0.1% of span ± 1 °C.
- Control: PID.
- Units: °C or °F.
- Channels: 6 control channels plus 6 monitoring channels.
Product resources
Cooper8 Computer Software Installer V2025.04-01
Cooper8 Computer Application Manual V1.1
Cooper8 Touch Screen Manual

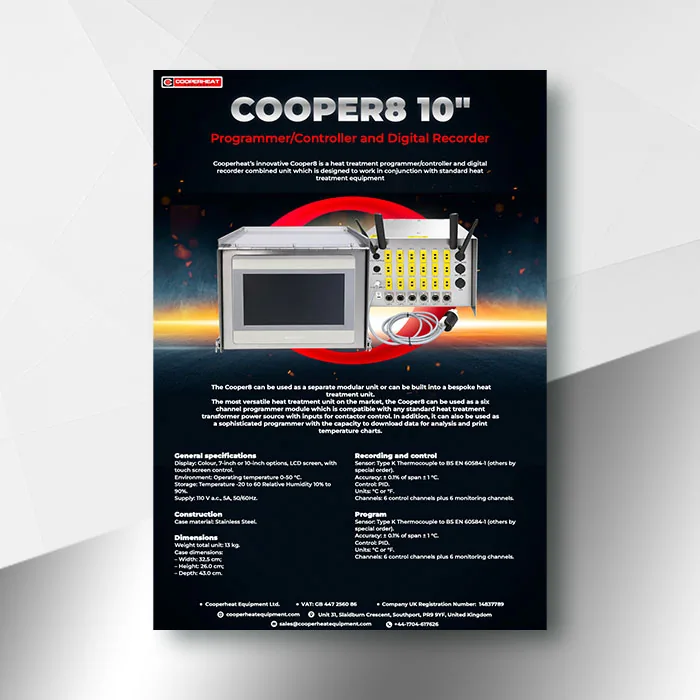

Cooper8 Programmer/Chart Recorder Brochure
End User License Agreement (EULA)
Changing the IP address on Teltonika radios
Downloading files to HMI
Calibrating the Cooper8 controller
Uploading configuration files to Watlow modules
Product related video materials
Frequently asked questions
What is the best way to control, monitor, and record heat treatment cycles for compliance and quality assurance?
For many heat treatment operations, ensuring accurate temperature control, reliable data recording, and compliance with industry standards can be complex and time-consuming. The Cooper8 programmer/controller and digital recorder addresses this by combining multi-channel control, real-time temperature monitoring, and automatic data logging in one intuitive unit.
You can also check Cooper8 15″ Screen Programmer/Recorder
Can the Cooper8 be used with existing heat treatment equipment?
Yes. The Cooper8 is compatible with standard heat treatment transformer power sources with contactor control inputs. It can be used as a standalone modular unit or integrated into a bespoke heat treatment system.
How many channels does the Cooper8 support?
The Cooper8 can be used as a six-channel heat treatment programmer, enabling control and monitoring of multiple heating zones at the same time.
Can I control and monitor the Cooper8 remotely?
Absolutely. With the COOPERMASTER™ mobile app, operators can connect to the Cooper8 and control heat cycles directly from their smartphone. The unit also supports remote control and remote data monitoring, giving users full visibility and control whether they are on-site or off-site.
How does the Cooper8 handle data recording and reporting?
The Cooper8 records real-time temperature data throughout the heat cycle. With the Cooper8 Report Tool, users can quickly download data, generate reports, and print temperature charts for analysis and compliance.
Take control of your heat treatment processes with the COOPERMASTER™ app!
Seamlessly manage Cooperheat’s smart controllers, including Cooper8™ and SideKick®, anytime, anywhere for free.
