PRODUCT OVERVIEW

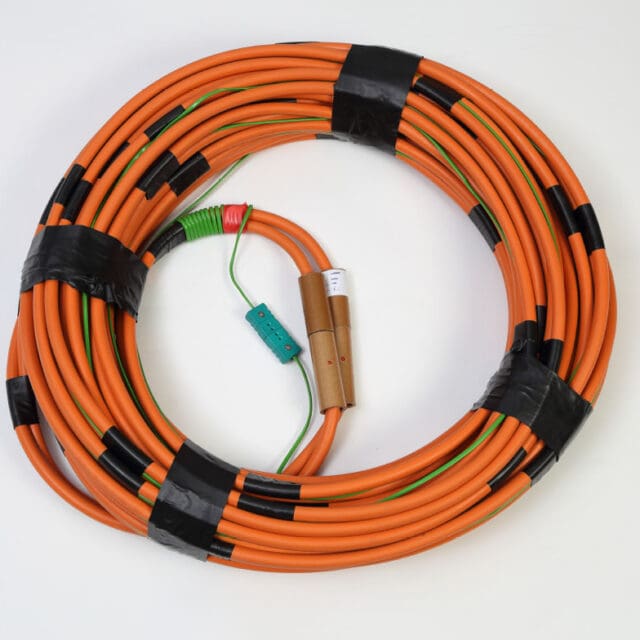

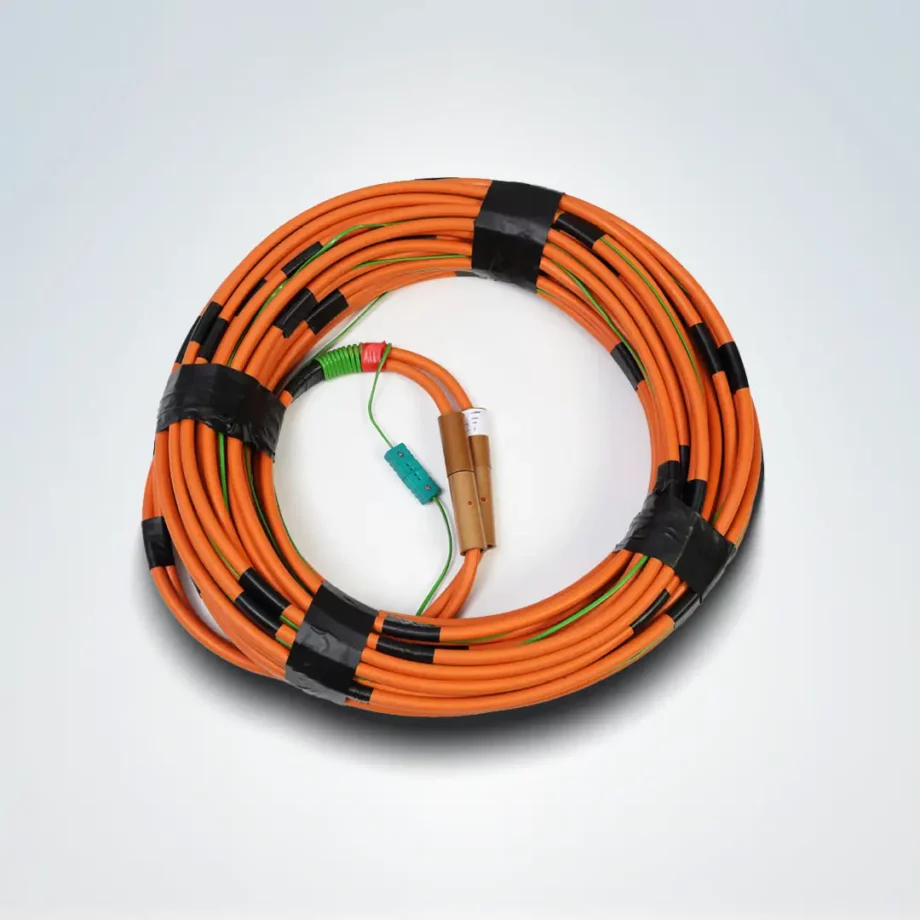

The Power Cable Series is a specialized cable assembly designed for industrial heat treatment systems, providing reliable power and control connections between heat treatment units and heating elements. Each cable set includes a triple power cable configuration along with one compensating cable, complete with plugs and sockets for easy connection. These cable sets are suitable for powering up to three heating elements per output channel, supporting 30V, 40V, 60V, and 80V heat treatment systems.
Product specifications
| Length, m | Rating, A | Plug/Socket, A | HT Unit Compatability |
|---|---|---|---|
| 15 | 135 | 300 | 300Amp Female Camlok |
| 30 | 180 | 300 | 300Amp Female Camlok |
| 30 | 280 | 300 | 300Amp Female Camlok |
Product resources
Cables
Frequently asked questions
What is included in the Power Cable Series set?
The Power Cable Series includes three power cables and one compensating cable, complete with plugs and sockets, designed for connecting heat treatment units to heating elements and temperature control systems.
How many heating elements can one cable set power?
Each Power Cable Series set can power up to three heating elements per output channel, improving efficiency and simplifying heat treatment equipment connections.
What voltage systems are compatible with the Power Cable Series?
The cable series is compatible with 30V, 40V, 60V, and 80V heat treatment systems, making it suitable for a wide range of industrial resistance heating applications.
What is the purpose of the compensating cable in the set?
The compensating cable transmits thermocouple signals from the heating area back to the temperature controller or programmer, enabling accurate temperature monitoring and control during heat treatment processes.
